10 Sets 4 Pin 5.08mm PCB Screw Terminal Block Phoenix Connectors 4P For Sale

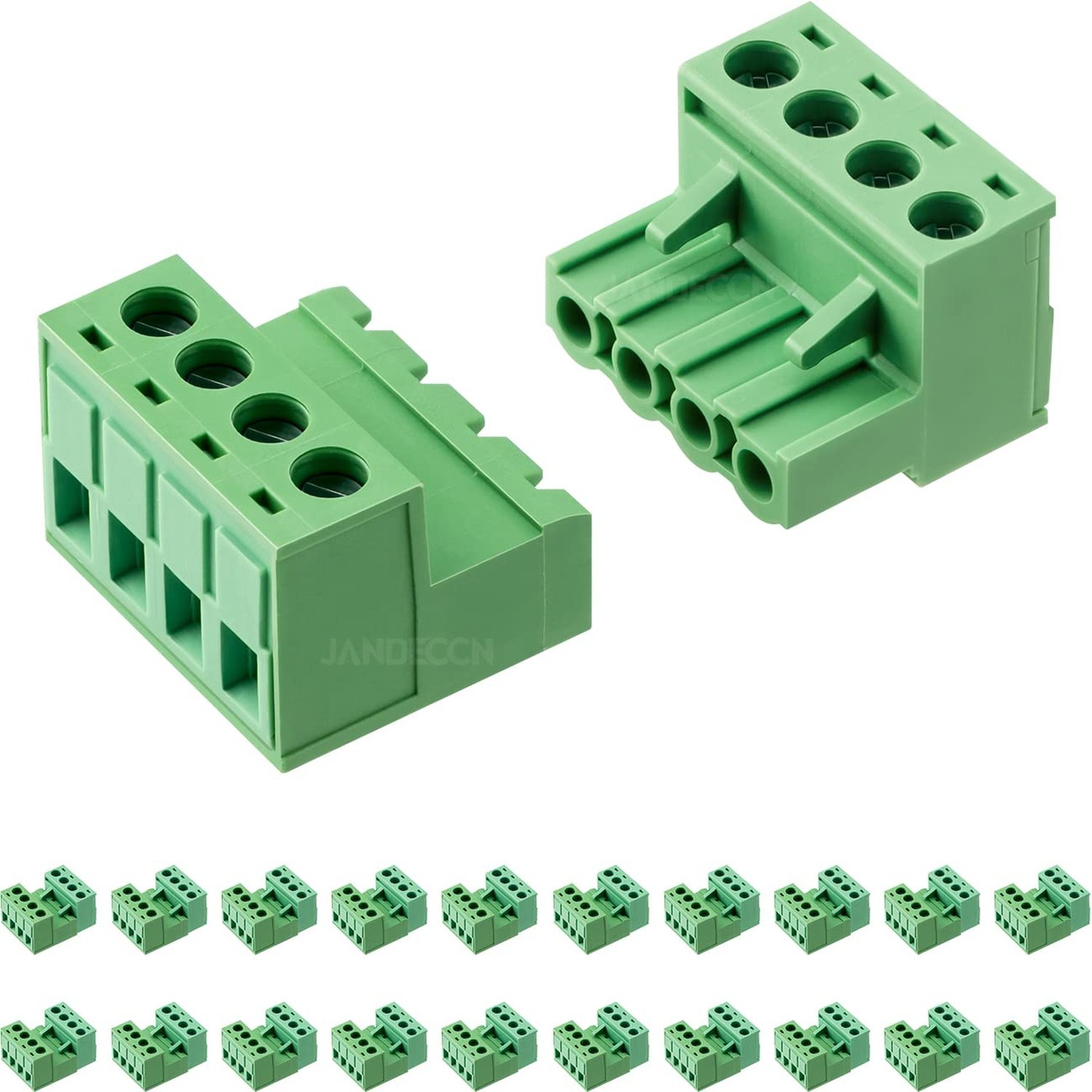

10 Sets 4 Pin 5.08mm PCB Screw Terminal Block Phoenix Connectors
Product Details Size: 4P
Brand: JANDECCN
MPN: 2EDGK-5.08-4P
UPC: 728872992109
EAN: 0728872992109

• Current Rating: 20 A
• Item Pitch: 5.08 millimeters
• Connector Type: Screw
• Number Of Contacts: 4
• Mounting Type: din_rail, pcb
• Material: Plastic
• Color: 4P-C (10 Sets)
• Brand: JANDECCN
• Voltage: 300 volts
• Number Of Poles: 4
• Current Rating: 20 A
• Connector Type: Screw
• Number Of Contacts: 4
• Mounting Type: din_rail, pcb
• Voltage: 300 volts
• Number Of Poles: 4
• Upper Temperature Rating: 105 °C
• Number of Positions: 40
• Pitch: 5.08 millimeters
• Material Type: Plastic
• Color: 4P-C (10 Sets)
• Brand Name: JANDECCN
• Model: 2EDGK-5.08-4P
• Number of Items: 20
• Manufacturer: JANDECCN
• UPC: 728872992109
• Item Highlight: PA66, Easy Plug & Screw Wiring, Fits 12-24 AWG Wire Gauge
• Unit Count: 20 Count
• Part Number: 2EDGK-5.08-4P

• Pitch: 5.08mm; Rated Value: 20A 300V ; Wire Range: 12-24AWG
• Withstanding Voltage: AC1500V/1Min; Torque: 0.5 Nm (4.5lb-In)
• Stripping length: 7-8mm; Temperature range: - 40 C - + 105 C
• JANDECCN terminal blocks are made from plastic PA66 with high temperature resistant and V0 flame retardant. PCB din rail adapter. Easy to install and detach. Just loosen the screws, insert the stripped cable and tighten the screws.
• JANDECCN screw terminals can be used for Arduino wire connection. Widely applied in most electronics, communication equipment, instruments, computers, automatic control system, household appliance and warning devices, IC Socket, DIY PCB Universal Board, Power Modules and LCD Modules.

---

---
